Product Video Description

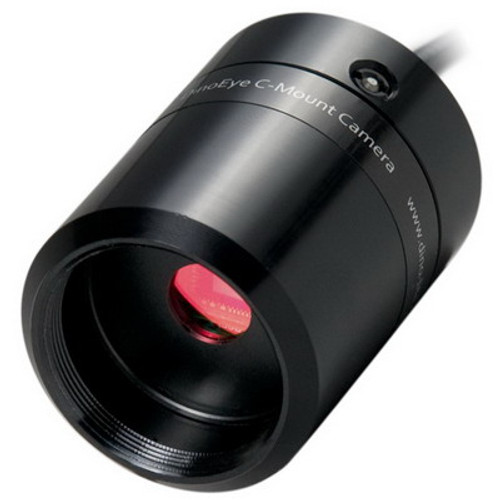

Dino-Eye Eyepiece Camera


  • CT – Microtouch (Trigger)
  • C-Mount Digital Microscope
  • USB 2.0 Output
  • 1.3M / Resolution 1280x 1024
  • 50mm x 32mm (D)
  • Enhanced Color CMOS


Product Number AM-423C Eyepiece Magnification N/A
Warranty Period 1 Year Pixels 1.3M
Condition New Resolution 1280x 1024
Packaging Retail Box Data Output USB 2.0
Tech Support Dealer or Bigc.com Sensor Enhanced Color CMOS
Regulatory Approval CE, FCC, RoHS Country of Origin Taiwan
Unit Weight 3.5 Oz / 100gm Unit Weight w/package 0.8 lbs
Units Dimensions 50mm x 32mm (D) Master Box Dimensions 6.5”x 6.5”x 2.5”

Product Applications

The Dino-Eye AM4023CT USB C-Mount camera allows you to attach a digital camera onto an optical device so you can clearly observe in real-time what your device is viewing on a computer or projected for an audience to see. The AM4023CT has a MicroTouch trigger for capturing images without clicking on a mouse or using a keyboard.

With its USB interface, you can also easily and directly record images on your computer with the included DinoCapture software’s for PC or DinoXcope software for MAC. The Dino-Eye AM4023CT is a perfect companion for work, clinic, or laboratory using any device that can attach a C-Mount camera.

This eyepiece digital camera (USB 2.0) is professionally designed for traditional microscopes. It works perfectly with all kinds of optical microscopes, such as Biological microscope, Metallurgical microscope and Stereo microscope, etc.

The images of the observed specimen or samples can be accurately displayed on the computer screen. The powerful, advanced software included with the camera ensures simple and convenient operation allowing easy capture of images from the microscope!

General Features:

  • Resolution: 1280x 1024 pixels
  • Interface: USB 2.0
  • Camera Size: 50mm (L) x 32mm (D)

Technical Specifications:

  • Interface: USB 2.0
  • Resolution: 1280×1024 pixels
  • Camera Size: 50mm (L) x 32mm (D)
  • Sensor: Enhanced Color CMOS
  • Video frame Rate: up to 30 frame-per-second, 15fps at 1.3M
  • Save File format: BMP, JPG, AVI
  • Compatible Windows 2000/XP, Vista, Windows 7 and MAC OS 10.4 or later

Microscope Dimensions and Weight:

  • Body Diameter: 50mm (L) x 23mm (D)
  • Cable length: 6 feet / 180 cm

Mechanical Layout:

  • Total unit with cable weight: 3.5 Oz / 100gm +/- 20g (not including manual)
  • Camera Size: 50mm (L) x 32mm (D)

Regulatory Approvals:


Package includes:

  • Dino-Eye Digital Microscope Eyepiece Camera
  • “Dino Capture” Software CD with Instruction manual


  • USB Ext cable 6′

Additional Information:

  • The USB 2.0 connection eliminates the need for interface cards or expensive software
  • The software for the collection and processing of photos is included
  • Software is easy and convenient to load and use
  • Automatic or manual color balance and control
  • Automatic or manual brightness control

Minimum Product Requirements:

  • OS: Windows 7 ,Vista ,XP or Windows Server 2003 (DinoCapture 2.0 software) orMAC OS 10.4 or later (DinoXscope software, MicroTouch function not supported)
  • USB 2.0 port
  • CPU: 1.5GHz Pentium 4 or equivalent AMD Athlon processor or faster
  • HD: At least 200MB available HD space
  • RAM: 1GB RAM (1.5 require for Windows Vista,7) and above
  • Graphics card: 128MB video card or above
  • CD-ROM driver for installation






C-Mount Camera
1.3M / 1280×1024
50mm x 32mm
USB 2.0 Output, 30 fps
MicroTouch Trigger
