Product Description

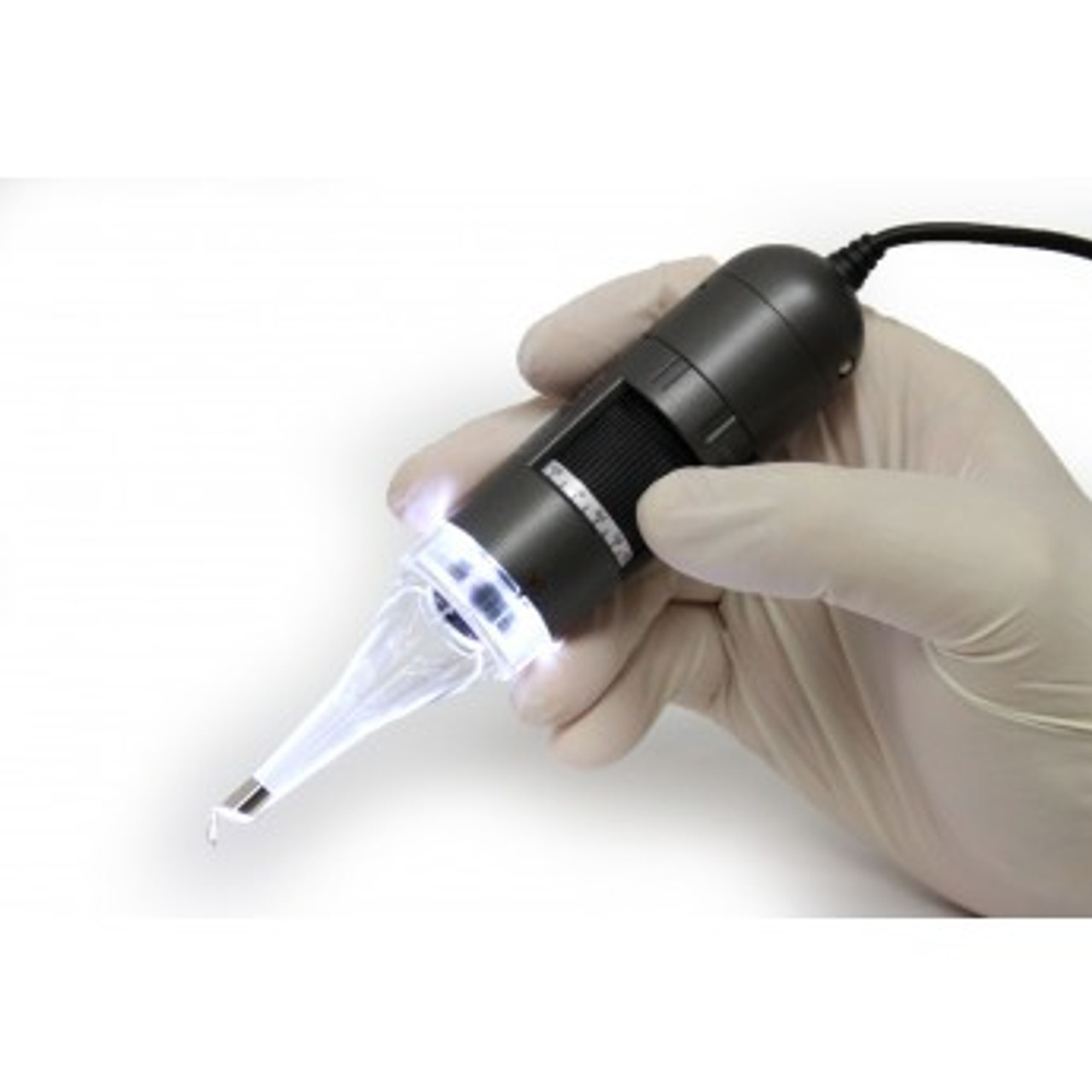

The AD4112NTL Dino-Lite handheld microscope is a composite (AV/Video RCA output) model with the interchangeable nozzle feature and longer working distance. This model includes both a standard open faced nozzle as well as a sealed transparent cap nozzle designed to protect the lens and built in LED lights from dust, debris and moisture common to certain work environments. The longer working distance allows for more space between the end of the AD4112NTL and the object in view. This model connects directly to a television via the RCA/Component cables and has a magnification range of 10x - 90x.
Highlights
10x - 90x
Optical magnification power
640 × 480 pixels
Capture in full detail with resolution up to 640 × 480 pixels
TV (RCA)
Simple setup
Two-year warranty & free tech support
All Dino-Lite microscopes feature a two-year warranty and include free U.S. based tech support for the life of the product.
Long working distance
Lens system designed to provide magnification at a longer distance compared to typical microscopes
Many more
See the complete specifications below.
Specifications
| LEDs | White (8) |
|---|---|
| LED Type | White |
| Polarization | No |
| Magnification Range | 10x - 90x |
| Working Distance | Long |
| Lens Type | Glass |
| Sensor Type | CMOS |
| Resolution | 640 × 480 pixels |
| Megapixels | 0.3 MP |
| Frame Rate (max) | 60 FPS |
| Connection Type | TV (RCA) |
| Weight | 105g (3.7 oz) |
|---|---|
| Cable Length | 182cm (71.65 in) |
| Magnification Lock | Yes |
| Body Material | ABS Plastic |
| Measurement | No |
| Microtouch Sensor | Yes |
| Package Includes | Microscope |
| Warranty Period | 2 years |
| Manufactured in | Taiwan |
| Service & Support | U.S. (www.dinolite.us) English & Spanish |
| Regulatory Approval | CE, FCC |
Charts
| Magnification | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
|---|---|---|---|---|---|---|---|---|
| Working Distance | 151.0 | 101.0 | 77.2 | 64.1 | 56.2 | 51.3 | 48.3 | 46.6 |
| Field of View | 19.6 x 15.6 | 13.0 x 10.4 | 9.8 x 7.8 | 7.8 x 6.3 | 6.5 x 5.2 | 5.6 x 4.5 | 4.9 x 3.9 | 4.3 x 3.5 |
| Depth of Field |
| Magnification | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
|---|---|---|---|---|---|---|---|---|
| Working Distance | 5.945 | 3.976 | 3.039 | 2.524 | 2.213 | 2.020 | 1.902 | 1.835 |
| Field of View | 0.772 x 0.614 | 0.512 x 0.409 | 0.386 x 0.307 | 0.307 x 0.248 | 0.256 x 0.205 | 0.220 x 0.177 | 0.193 x 0.154 | 0.169 x 0.138 |
| Depth of Field |
