Product Description

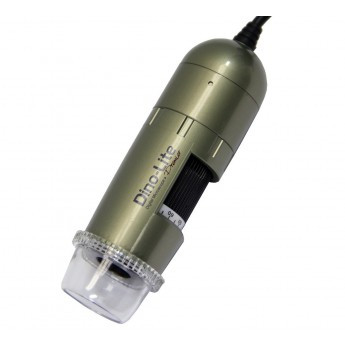

The Dino-Lite Premier AM4113ZT is a 1.3 megapixel handheld digital microscope with adjustable polarization. Simply by rotating the polarizer filter, the handheld digital microscope AM4113ZT could amazingly decrease the reflection glare to almost any extent, and could thus help the user see through the surface of fully or partially transparent materials, such as jewelry, skin, glass, and plastic, or see clearly the high reflectivity materials, such as metal or soldering. The handheld digital microscope AM4113ZT could be very useful in many applications including PCB, printing, machining, textile, jewelry, or skin care and more.
Lighting
| LEDs | 8 |
|---|---|
| LED Type | White |
| Built-in Diffuser | No |
| Polarization | Yes |
| Strobe Light | No |
Optics
| Magnification Range | 10x - 50x, 220x |
|---|---|
| Working Distance | Standard |
| Lens Type | Glass |
Sensor
| Sensor Type | CMOS |
|---|---|
| Resolution | 1280 × 1024 pixels |
| Megapixels | 1.3 MP |
| Frame Rate (max) | 30 FPS |
Compatibility
| Operating System | Mac OS, Windows |
|---|---|
| Included Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Connection Type | USB 2.0 |
| Image Save Formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Video Save Formats (Windows) | WMV, FLV, SWF |
| Image Save Formats (Mac OS) | JPEG, PNG |
| Video Save Formats (Mac OS) | MOV |
| Imaging Standards | DirectShow, UVC |
Dimensions
| Dimensions | 10.5cm (L) x 3.2cm (D) (4.13" x 1.26") |
|---|---|
| Weight | 105g (3.7 oz) |
| Cable Length | 182cm (71.65 in) |
Body
| Magnification Lock | Yes |
|---|---|
| Body Material | ABS Plastic |
Features
| Measurement | Yes |
|---|---|
| Microtouch Sensor | Yes |
Information
| Package Includes | Microscope, Carry Pouch, Software CD, Calibration Target, Holster |
|---|---|
| Warranty Period | 2 years |
| Manufactured in | Taiwan |
| Service & Support | U.S. (www.dinolite.us) English & Spanish |
| Regulatory Approval | CE, FCC, ROHS |
Useful Links

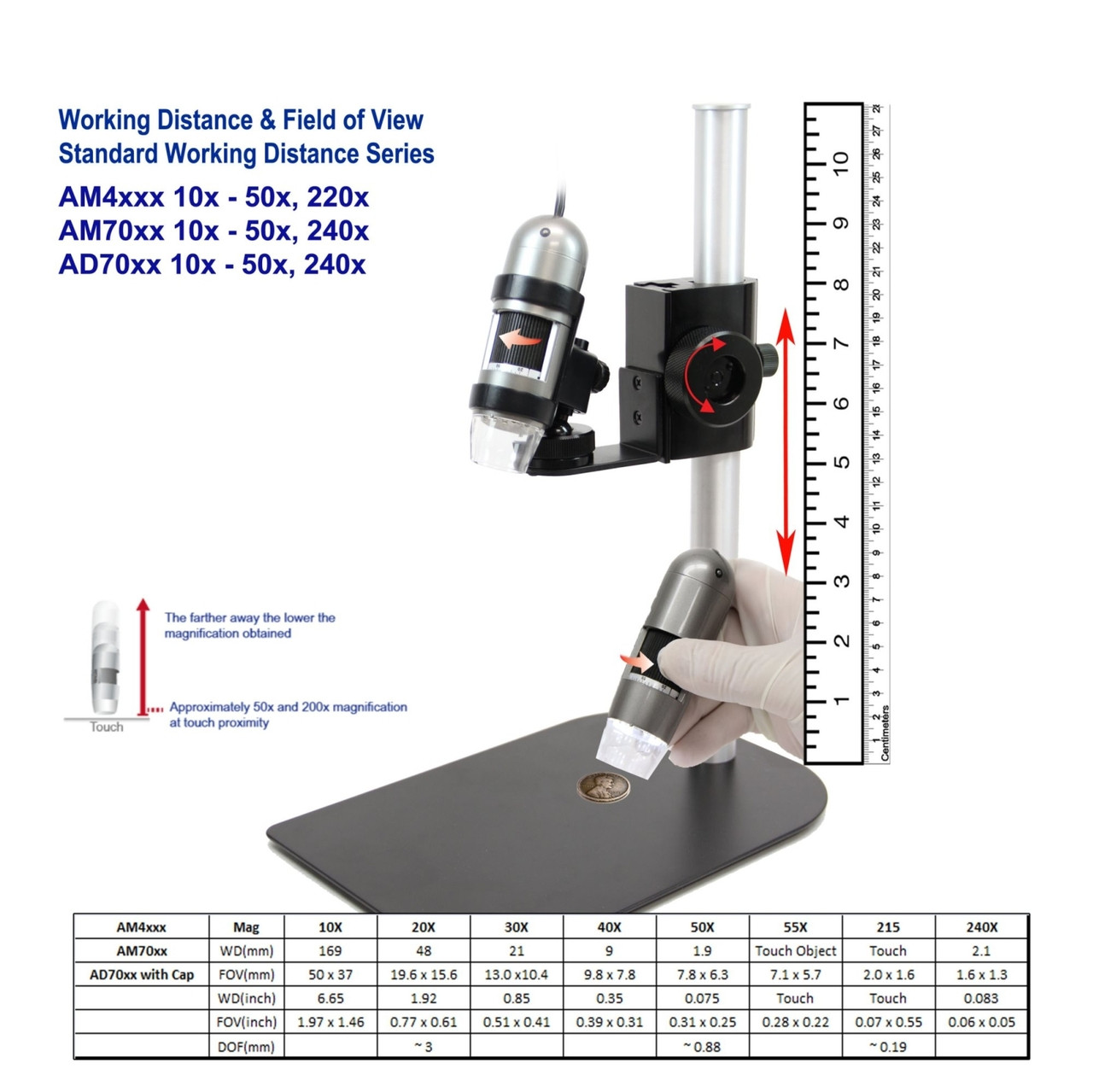

| Working Distance | View Chart |
|---|---|
