Product Description
USB 3.0 interface delivers exceptionally sharp and fluent imaging without compression to reveal the finest details, this model includes AMR.
DETAILS

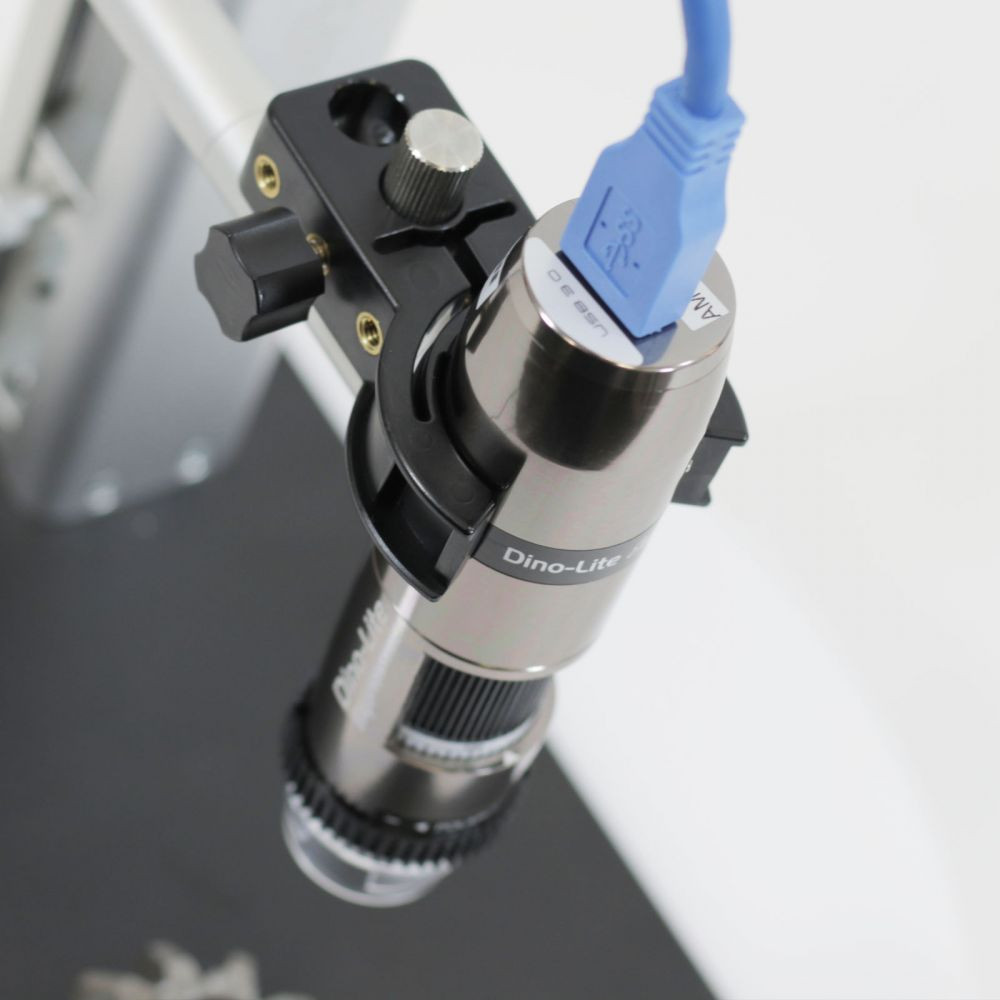

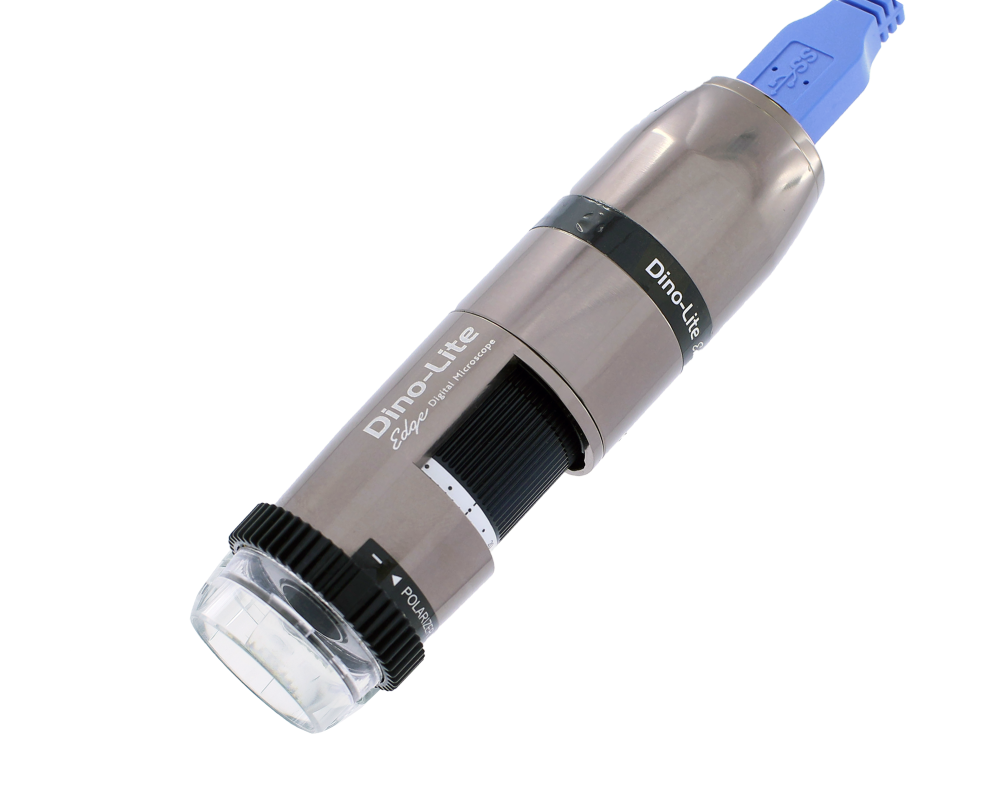

Dino-Lite Edge AM73515MZT is a USB 3.0 model providing uncompressed viewing to deliver exceptional sharpness, improved color accuracy and image quality with a magnification range of 10x - 220x. By using USB 3.0 the AM73515MZT is capable of providing 45FPS at 1280 x 960 resolution, allowing this microscope to be used in a wider range of more demanding applications. This model also includes Automatic Magnification Reading (AMR) which transmits the current magnification directly to the software. If the magnification is adjusted, AMR automatically updates within the software for faster execution of measurement and calibration. Flexible LED Control (FLC) enables partial illumination control options to enhance edge contrast and provides intensity adjustment for better adaptability, combined with the built-on polarizer, interchangeable front caps, and rugged metal housing.
USB 3.0 Dino-Lite Information
HIGHLIGHTS
10x - 220x
Optical magnification power
2560 x 1920 pixels
Capture in full detail with resolution up to 2560 x 1920 pixels
USB 3.0
Simple setup
Windows and Mac
Compatible with Windows 7, 8, 10 & Mac OS (Verify compatible Mac OS versions in Specifications) including 32-bit and 64-bit systems.
Annotate & Measure
Use simple tools to draw lines, shapes, and text on the image. Calibrate and measure lines, circles, angles & more.
Automatic Magnification Reading
Allows the included software to read the magnification setting from the microscope device, simplifying the measuring process.
Flexible LED Control
Additional LED controls within the included software for adjusting LED brightness and on/off toggle by quadrant.
Two-year warranty & free tech support
All Dino-Lite microscopes feature a two-year warranty and include free U.S. based tech support for the life of the product.
Polarizer
Built-in adjustable polarizer greatly reduces glare on reflective surfaces.
Language options
Software interface defaults to English and can be changed to any of 25 additional translations.
Barcode reader
Software feature to use camera for reading from QR codes and over 20 other types of barcodes.
Many more
See the complete specifications below.
CHARTS
Working distance & field of view mm
| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
|---|---|---|---|---|---|---|---|---|
| Working Distance | 60.2 | 33.5 | 20.9 | 13.9 | 4.1 | 5.6 | 9.9 | 11.9 |
| Field of View | 19.5 x 14.6 | 13 x 9.7 | 9.8 x 7.3 | 7.8 x 5.8 | 3.9 x 2.9 | 2.6 x 1.9 | 2.0 x 1.5 | 1.8 x 1.3 |
| Depth of Field | 2.5 | 1.8 | 1.5 | 0.1 |
Working distance & field of view inch
| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
|---|---|---|---|---|---|---|---|---|
| Working Distance | 2.370 | 1.319 | 0.823 | 0.547 | 0.161 | 0.220 | 0.390 | 0.469 |
| Field of View | 0.768 x 0.575 | 0.512 x 0.382 | 0.386 x 0.287 | 0.307 x 0.228 | 0.154 x 0.114 | 0.102 x 0.075 | 0.079 x 0.059 | 0.071 x 0.051 |
| Depth of Field | 0.098 | 0.071 | 0.059 |
SPECIFICATIONS
| Measurement | Yes |
|---|---|
| Flexible LED Control | Yes |
| Automatic Magnification Reading | Yes |
| Extended Depth of Field | No |
| Enhanced Dynamic Range | No |
| Magnification Lock | Yes |
| Body Material | Aluminum Alloy |
| Microtouch Sensor | Yes |
| LEDs | White (8) |
| Polarization | Yes |
| Magnification Range | 10x - 220x |
| Working Distance | Standard |
| Lens Type | Glass |
| Megapixels | 5 MP |
| Image Save Formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Image Save Formats (Mac OS) | JPEG, PNG |
| Operating System | Windows 7, 8, 10, Mac OS 10.9+ |
|---|---|
| Connection Type | USB 3.0 |
| Included Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Imaging Standards | UVC |
| Sensor Type | CMOS |
| Resolution | 2560 x 1920 pixels |
| Frame Rate (max) | 45 FPS |
| Dimensions | 11.9cm (L) x 3.3cm (D) |
| Weight | 110g (3.88oz) |
| Cable Length | 182cm (71.65 in) |
| Package Includes | Microscope, Software CD, Edge Calibration Target, Alternate end caps, USB |
| Warranty Period | 2 years |
| Manufactured in | Taiwan |
| Service & Support | U.S. (www.dinolite.us) English & Spanish |
| Regulatory Approval | CE, FCC |
