Product Description

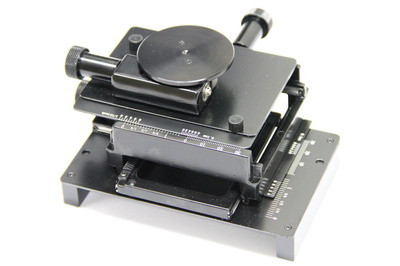

Base with Removable Rotating table
- MS15X can be used independently
- XY Base Travel: X axis: 1.5" Y axis: 1.25"
- Optional usage with MS35B/36B stands
- Optional rotating table included in addition to XY Base
- Compact yet effective at 5” x 6” x 3
| Description | |||
| Model Number | MS15X | Tech Support | Dealer or Bigc.com |
| Warranty Period | 1 Year | Regulatory Approval | RoHS |
| Condition | New | Country of Origin | China |
| Unit Weight | 2 lbs | Unit Weight w/package | 2.3 lbs |
Product Applications
The MS15X, XY base is designed for use with all sorts applications including inspection providing fine movement with X and Y axis. The travel on the XY Base is as follows: X axis allows for 1.5" and the Y axis allows for 1.25" of movement, it can be conveniently attached to a MS35B or MS36B stands with the use of C-Clamps that are included in the packaging.
Another great option is use of a Rotating Table that can screw directly on top of the MS15X base which is included in the purchase.
This allows for full range of movement in rotational, X and Y movements for the absolute best and precise inspection with its fine adjustment knobs.
The precision machine crafted components provide for smooth movements and adjustments in positions.
Features/Specifications
General Features:
- XY + R movement base
- XY Base Travel: X axis: 1.5" Y: 1.25"
- Optional usage with attaching Rotating Table (Included)
- Optional addition with MS35B or MS36B stands
Product Dimensions and Weight:
- XY + R Base dimension 5” x 6” x 3”
Mechanical Layout:
- Fine adjustment located on X, Y axis and rotating table.
Package includes:
- XY Base
- Rotating table
- C-Clamp for option usage with MS35B/36B
