Product Description

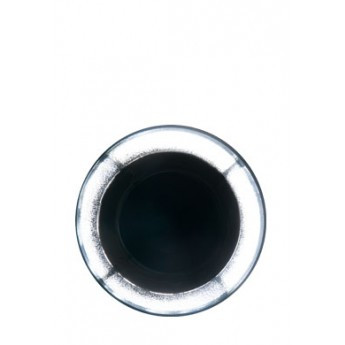

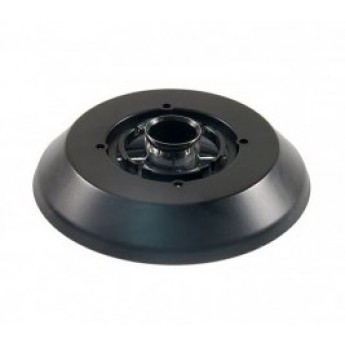

In most macro observation, a ring light may help to reveal more details by generating shadow-less illumination. Working seamlessly with the Dino-Lite Edge series, the N3C-R front cap is a unique and the simplest solution designed to provide ring illumination for a microscope. The 6.5 cm (2.5 inch) diameter N3C-R fully utilizes the Dino-Lite's built-in LEDs by redirecting it to form a focused, diffused, and uniform ring-light. For polarizer model such as AM4115ZT, the polarizer can still be used for suppressing the unwanted glare or reflection when using with N3C-R. Without the clutter of mounting and powering an external ring light, thus no heat and noticeable weight been added, the clip-on N3C-R economically provides alternative illumination and adds more flexibility to Dino-Lite’s applications. Note: The N3C-R has best working distance in the range of about 2 to 15 cm. It may not be suitable for short working distance operation, and is not compatible with high magnification models such as AM4515T5 or AM4515T8.
Specifications
| Warranty Period | 1 year |
|---|---|
| Manufactured in | Taiwan |
| Service & Support | U.S. (www.dinolite.us) English & Spanish |
| Regulatory Approval | ROHS |
| Dimensions | 15.5 mm (H) x 65 mm (D) / 0.6" x 2.5" |
| Compatible with | Low and Standard Magnification Edge Series Models (Excludes AM4515T5, AM4515T8) |
|---|---|
| Package Includes | Lens Cap Adapter |
| Package Dimensions | 8.2 cm (L) x 8.3 cm (W) x 2 cm (H) |
| Package Weight | 1lb |
