Product Description

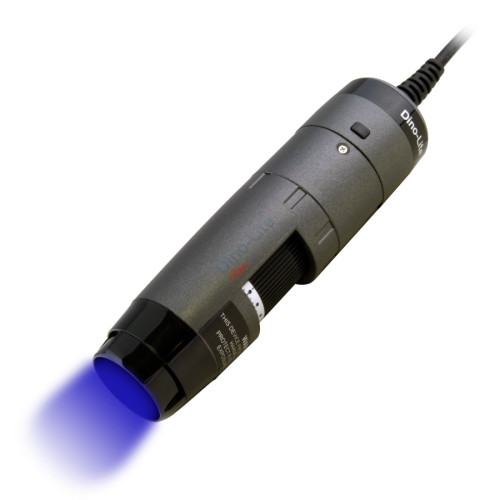

The AF4515-FVT Dino-Lite Edge handheld digital microscope with AMR has built-in near UV-fluorescent adjustable brightness LED’s with a spectrum of 400nm and comes with a high quality 1.3 megapixel sensor.
DETAILS
The AF4515-FVT Dino-Lite Edge handheld digital microscope offers near UV-fluorescent LED’s with a spectrum of 400nm and comes with a high quality 1.3 megapixel sensor which allows users to examine object with the greatest of details.
AMR displays the current magnification on screen with the included software for Windows or Mac OS. AMR is only available on specific Edge Series AMR models.
Flexible Lighting Control provides lighting adjustment options including intensity settings from 1-6, as well as the ability to turn on or off LED's by quadrant.
The AF4515-FVT provides various magnifications depending on distance, with a maximum magnification over 220x under UV-fluorescent light.
The new Wireless-Ready adaptable design allows this scope to be easily converted to wireless with the WF-20 (sold separately).
Related links:
HIGHLIGHTS
10x - 220x
Optical magnification power
1280 × 1024 pixels
Capture in full detail with resolution up to 1280 × 1024 pixels
USB 2.0
Simple setup
Wireless Ready
The USB can be swapped to use the WF-20 Wireless Adapter for wireless streaming.
Windows and Mac
Compatible with Windows 7, 8, 10 & Mac OS (Verify compatible Mac OS versions in Specifications) including 32-bit and 64-bit systems.
Annotate & Measure
Use simple tools to draw lines, shapes, and text on the image. Calibrate and measure lines, circles, angles & more.
Automatic Magnification Reading
Allows the included software to read the magnification setting from the microscope device, simplifying the measuring process.
Flexible LED Control
Additional LED controls within the included software for adjusting LED brightness and on/off toggle by quadrant.
Two-year warranty & free tech support
All Dino-Lite microscopes feature a two-year warranty and include free U.S. based tech support for the life of the product.
Language options
Software interface defaults to English and can be changed to any of 25 additional translations.
Barcode reader
Software feature to use camera for reading from QR codes and over 20 other types of barcodes.
Many more
See the complete specifications below.
SPECIFICATIONS
| Measurement | Yes |
|---|---|
| Flexible LED Control | Yes |
| Automatic Magnification Reading | Yes |
| Extended Depth of Field | No |
| Enhanced Dynamic Range | No |
| Wireless Ready | Yes |
| Magnification Lock | Yes |
| Body Material | ABS Plastic |
| Microtouch Sensor | Yes |
| LEDs | Ultraviolet (8) |
| Polarization | No |
| LED Spectrum | 400nm |
| Magnification Range | 10x - 220x |
| Working Distance | Standard |
| Lens Type | Glass |
| Megapixels | 1.3 MP |
| Image Save Formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Video Save Formats (Windows) | WMV, FLV, SWF |
|---|---|
| Operating System | Windows XP, Vista, 7, 8, 10, Mac OS 10.5+ |
| Connection Type | USB 2.0 |
| Included Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Imaging Standards | UVC |
| Sensor Type | CMOS |
| Resolution | 1280 × 1024 pixels |
| Frame Rate (max) | 30 FPS |
| Dimensions | 11.4cm (H) x 3.3cm (D) (4.4" x 1.29") |
| Weight | 111g (3.9 oz) |
| Cable Length | 182cm (71.65 in) |
| Package Includes | Microscope, Carry Pouch, Software CD, Edge Calibration Target |
| Warranty Period | 2 years |
| Manufactured in | Taiwan |
| Service & Support | U.S. (www.dinolite.us) English & Spanish |
| Regulatory Approval | CE, FCC |
CHARTS
Working distance & field of view mm
| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
|---|---|---|---|---|---|---|---|---|
| Working Distance | 60.2 | 33.5 | 20.9 | 13.9 | 4.1 | 5.6 | 9.9 | 11.9 |
| Field of View | 19.5 x 15.6 | 13 x 10.4 | 9.8 x 7.8 | 7.8 x 6.3 | 3.9 x 3.1 | 2.6 x 2.1 | 2 x 1.6 | 1.8 x 1.4 |
| Depth of Field | 2.5 | 1.8 | 1.5 | 0.1 |
Working distance & field of view inch
| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
|---|---|---|---|---|---|---|---|---|
| Working Distance | 2.370 | 1.319 | 0.823 | 0.547 | 0.161 | 0.220 | 0.390 | 0.469 |
| Field of View | 0.768 x 0.614 | 0.512 x 0.409 | 0.386 x 0.307 | 0.307 x 0.248 | 0.154 x 0.122 | 0.102 x 0.083 | 0.079 x 0.063 | 0.071 x 0.055 |
| Depth of Field | 0.098 | 0.071 | 0.059 | 0.004 |
IN THE BOX
Microscope & cables
All necessary cables are included. USB models are powered by the USB connection, analog (direct to monitor) models include a power adaptor cable.
Software & drivers CD
A CD containing all necessary software and drivers to use the device. For computers without a CD drive, the software can be downloaded from the Dino-Lite website.
Calibration target
A target to be used for calibrating measurements.
