Product Description
The official magnification range of this microscope is 20x to 220x, however, this model is capable of focusing at 10x at longer distances.
Some models can even focus below 5x. Please contact us for more information.

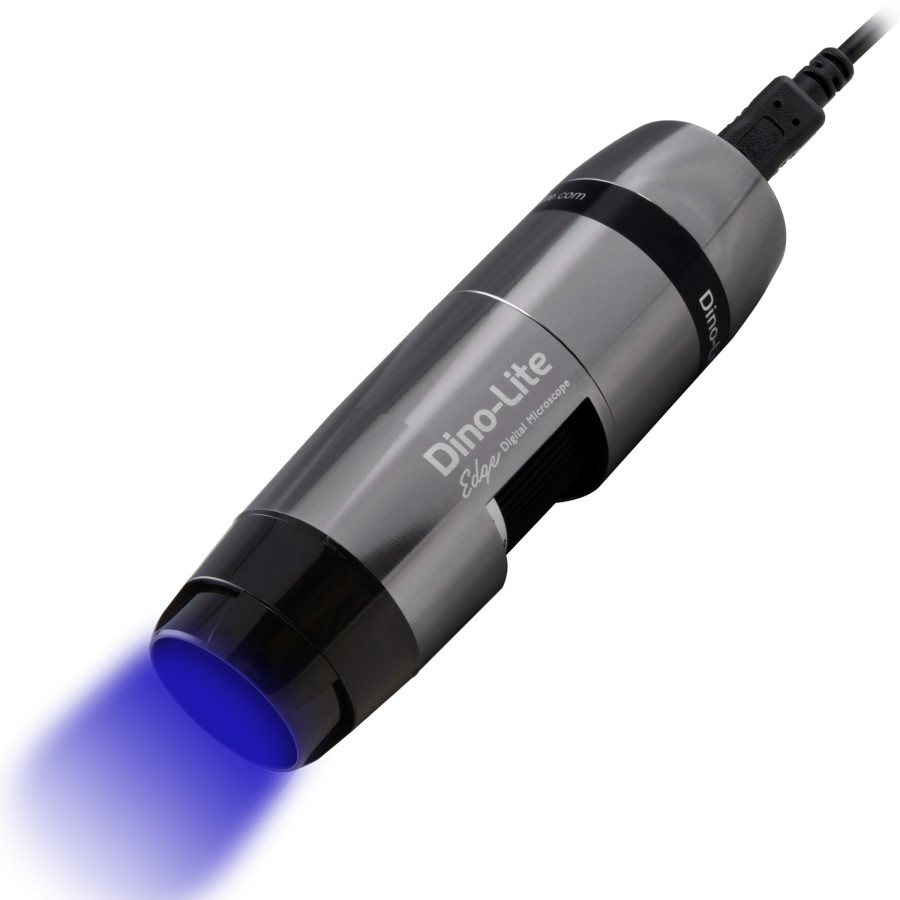

AM4117MT-G2FBW is the ideal solution for the selective isolation and observation of samples with green fluorescence using 465nm excitation light and a 510-545nm emission bandpass filter range. The high sensitivity sensor is especially useful for detecting low levels of fluorescence emissions. The 510-545nm emission bandpass filter blocks all non-green spectral emissions and selectively isolates the green spectral regions for unobstructed observations of green fluorescence emissions and useful for GFP applications such as Zebrafish research and also mCherry. The AM4117MT-G2FBW is effective in finding semiconductor defects and cracks in test plates with fluorescent penetrants.
This model has the capability of switching the light source from the excitation lights to a single white LED which provides the convenience of locating and focusing on the object (the image will remain tinted the color of the emission filter). Switch back to the main lighting for capturing fluorescent objects.
Related Article: Dino-Lite LED wavelength information
