    AM5216ZT: VGA Connection with Polarizer

    MSRP:
    Now: $1,149.99
    (You save )
    Write a Review
    Weight:
    1.00 LBS
    Shipping:
    Calculated at Checkout

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Overview

    Product Description

    The official magnification range of this microscope is 20x to 220x, however, this model is capable of focusing at 10x at longer distances. Some models can even focus below 5x.

    The Dino-Lite AM5216ZT Edge Series features a High Definition VGA connection and improved optics for sharper images. It easily allows for the observation of objects at touch proximity within its wide magnification range of 20x – 220x. Capable of 60 frames per second at 720p (1280 x 720), this model is ideal for observing specimens effectively with minimum lag while in motion. Built on is an adjustable polarizer to help suppress unwanted glare or reflections. With this feature, this model is suitable for a wide range of applications including the inspection, repair and assembly involving reflective or translucent materials, with examples such as soldering, quality inspection, or jewelry fabrication. No computer or software required for this model that connects directly to a monitor or TV with VGA connections.

    R4 & R6 Versions:

    • R4: MicroTouch is configured to quickly freeze video frames with a single tap of a finger, or hold to toggle the LEDs on/off.
    • R6: Hold the Microtouch for 1 second to freeze frame, tap it again to unfreeze.
      • Press and hold the Microtouch for 2 seconds till the LED flash twice to shut the light off and another 2 seconds to turn it on.

    SPECIFICATIONS

    Magnification Range 20x - 220x Connection Type VGA
    Resolution 720p Body Material Plastic
    Frame Rate (max) 60 fps Dimensions 10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
    Magnification Lock Yes Weight 105g (3.7 oz)
    Microtouch Sensor Yes Cable Length
    LEDs White (8) Warranty Period 2 years
    Polarization Yes Manufactured in Taiwan
    Working Distance Type Standard Regulatory Approval CE, FCC

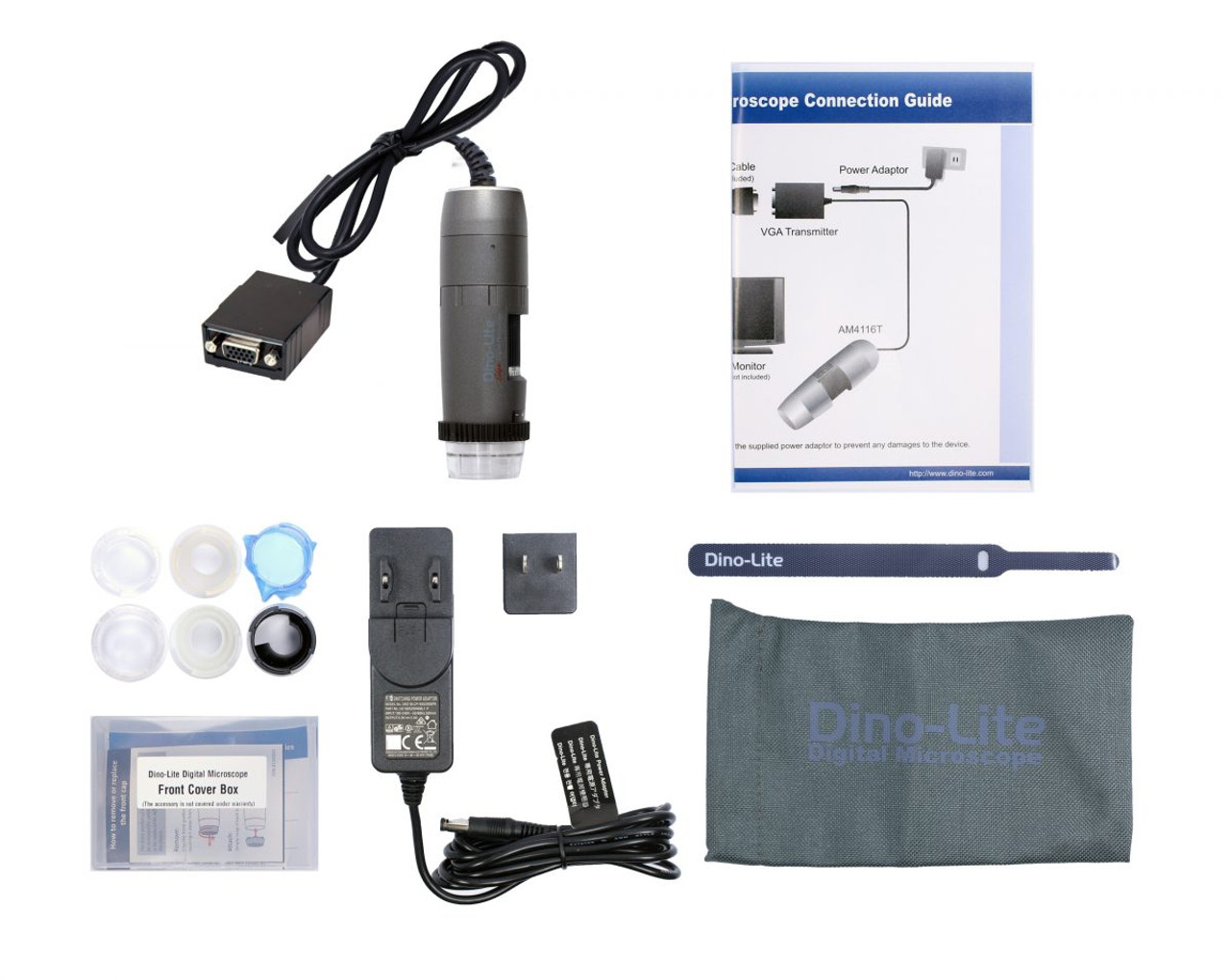

    In the Box Microscope, AC Adapter, Alternate end caps

    CHARTS

    MM

    Magnification 20 30 40 50 100 150 200 220
    Working Distance 60.2 33.5 20.9 13.9 4.1 5.6 9.9 11.9
    Field of View 19.5 x 15.6 13 x 10.4 9.8 x 7.8 7.8 x 6.3 3.9 x 3.1 2.6 x 2.1 2 x 1.6 1.8 x 1.4
    Depth of Field 2.5 1.8 1.5 – – – – 0.1

    INCH

    Magnification 20 30 40 50 100 150 200 220
    Working Distance 2.37 1.319 0.823 0.547 0.161 0.22 0.39 0.469
    Field of View 0.768 x 0.614 0.512 x 0.409 0.386 x 0.307 0.307 x 0.248 0.154 x 0.122 0.102 x 0.083 0.079 x 0.063 0.071 x 0.055
    Depth of Field 0.098 0.071 0.059 – – – – 0.004
