Product Description

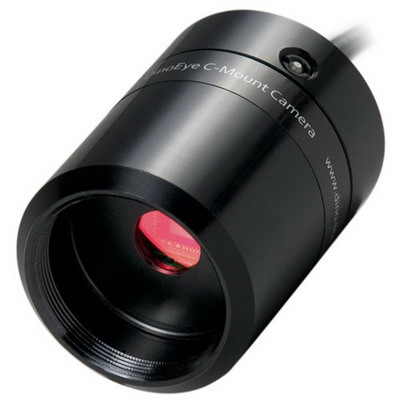

AM7023CT
The AM7023CT Dino-Eye USB 5 megapixel C-Mount camera allows you to attach a digital camera onto an optical device so you can clearly observe in real-time what your device is viewing on a computer or projected for an audience to see. The AM7023CT has a MicroTouch trigger for capturing images without clicking on a mouse or using a keyboard. With its USB interface, you can also easily and directly record images on your computer with the included DinoCapture software’s for PC or DinoXcope software for MAC. The Dino-Eye AM7023CT is a perfect companion for work, clinic, or laboratory using any device that can attach a C-Mount camera.
Optics
| Base Magnification | 1x |
|---|
Sensor
| Sensor Type | CMOS |
|---|---|
| Resolution | 2592 × 1944 pixels |
| Megapixels | 5 MP |
| Frame Rate (max) | 30 FPS |
Compatibility
| Operating System | Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS 10.4 (Tiger), Mac OS 10.5 (Leopard), Mac OS 10.6 (Snow Leop), Mac OS 10.7 (Lion), Mac OS 10.8 (Mtn Lion) |
|---|---|
| Included Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Connection Type | USB 2.0 |
| Image Save Formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Image Save Formats (Mac OS) | JPEG, PNG |
| Video Save Formats (Windows) | WMV, FLV, SWF |
| Video Save Formats (Mac OS) | MOV |
Dimensions
| Microscope Connection | Trinocular (C-mount) |
|---|---|
| Base Diameter | 32mm |
| Dimensions | 4.8cm (L) x 3.2cm (D) |
| Weight | 100g |
| Cable Length | 182cm |
Body
| Body Material | Metal |
|---|
Features
| Measurement | Yes |
|---|---|
| Microtouch Sensor | Yes |
Information
| Package Includes | Camera, Carry Pouch, Software CD, Calibration Target |
|---|---|
| Warranty Period | 2 years |
| Manufactured in | Taiwan |
| Service & Support | U.S. (www.dinolite.us) English & Spanish |
| Regulatory Approval | CE, FCC, ROHS |
Detailed Specs
| Endoscope Instructions | View Image |
|---|---|
| Software Features | Feature Gallery (USB Series Only) |
| Eyepiece Field of View | View PDF |
| Dino-Eye Selection and Setup | View PDF |
| How to measure microscope | View Image |
| Video | Watch Video |
