Product Description

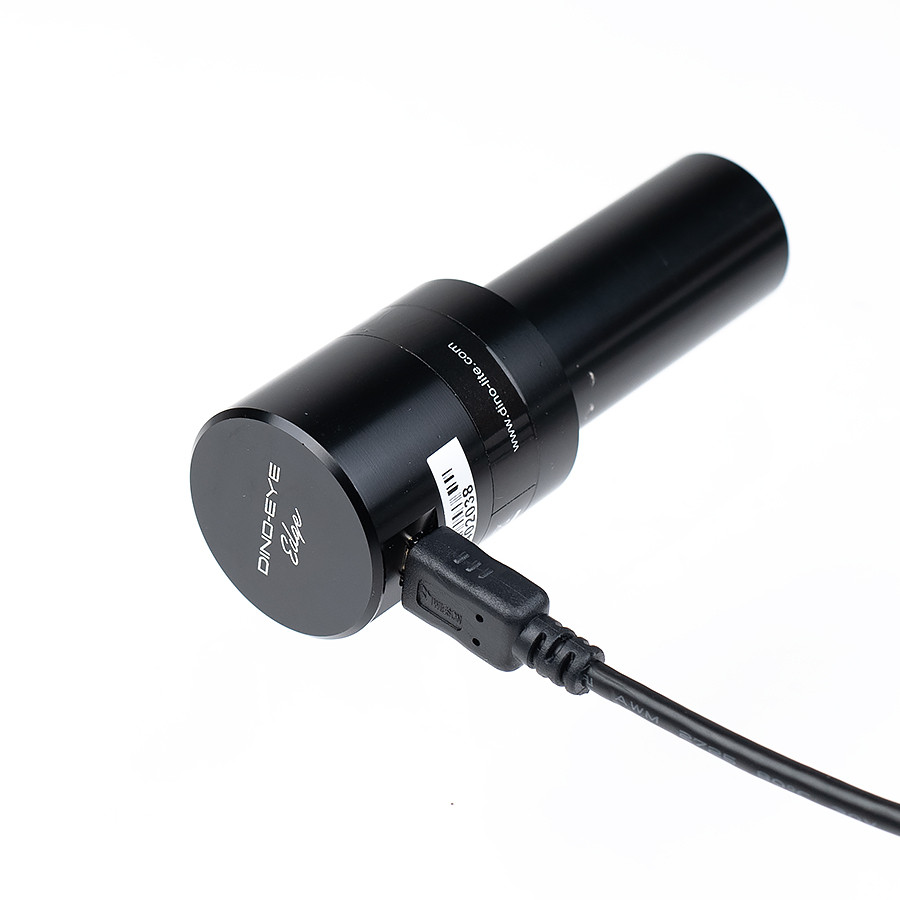

The first eyepiece with the high quality Edge Series class optics and high-resolution sensor, the 5MP Dino-Eye Edge Series AM7025X offers remarkable image performance while providing a relatively larger field of view than its predecessors. The AM7025X design and included adapters allows for fitment within 23mm, 30mm, 30.5mm or c-mount eyepiece slots which can be fixed into ideal focal positions. With fine color reproducibility, the AM7025X is capable of capturing the finest details of a microscope’s view for a wide range of professional applications.
SPECIFICATIONS
| Resolution | 2592 × 1944 pixels | Connection Type | USB 2.0 |
| Megapixels | 5MP | Operating System | Mac OS, Windows |
| Frame Rate (max) | 30 fps | Dimensions | 8.0cm (H) x 3.2cm (D) |
| Base Magnification | Equivalent to 20x | Weight | 117g |
| Base Diameter | 23mm | Cable Length | |
| Measurement | Yes | Warranty Period | 2 years |
| Body Material | Metal | Manufactured in | Taiwan |

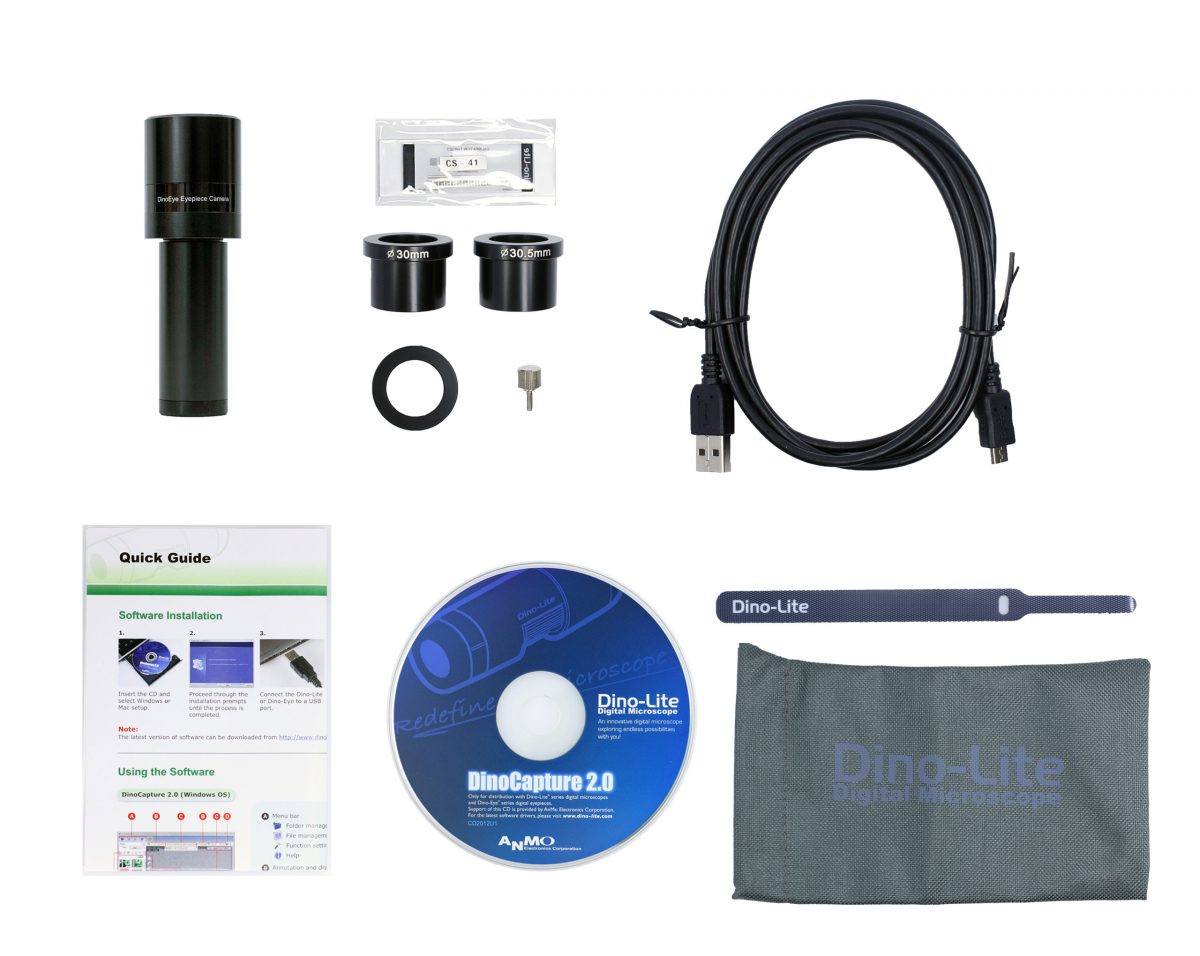

| Package includes | Camera, Edge Calibration Target, 30mm & 30.5mm Adapters | Regulatory Approval | CE, FCC |
